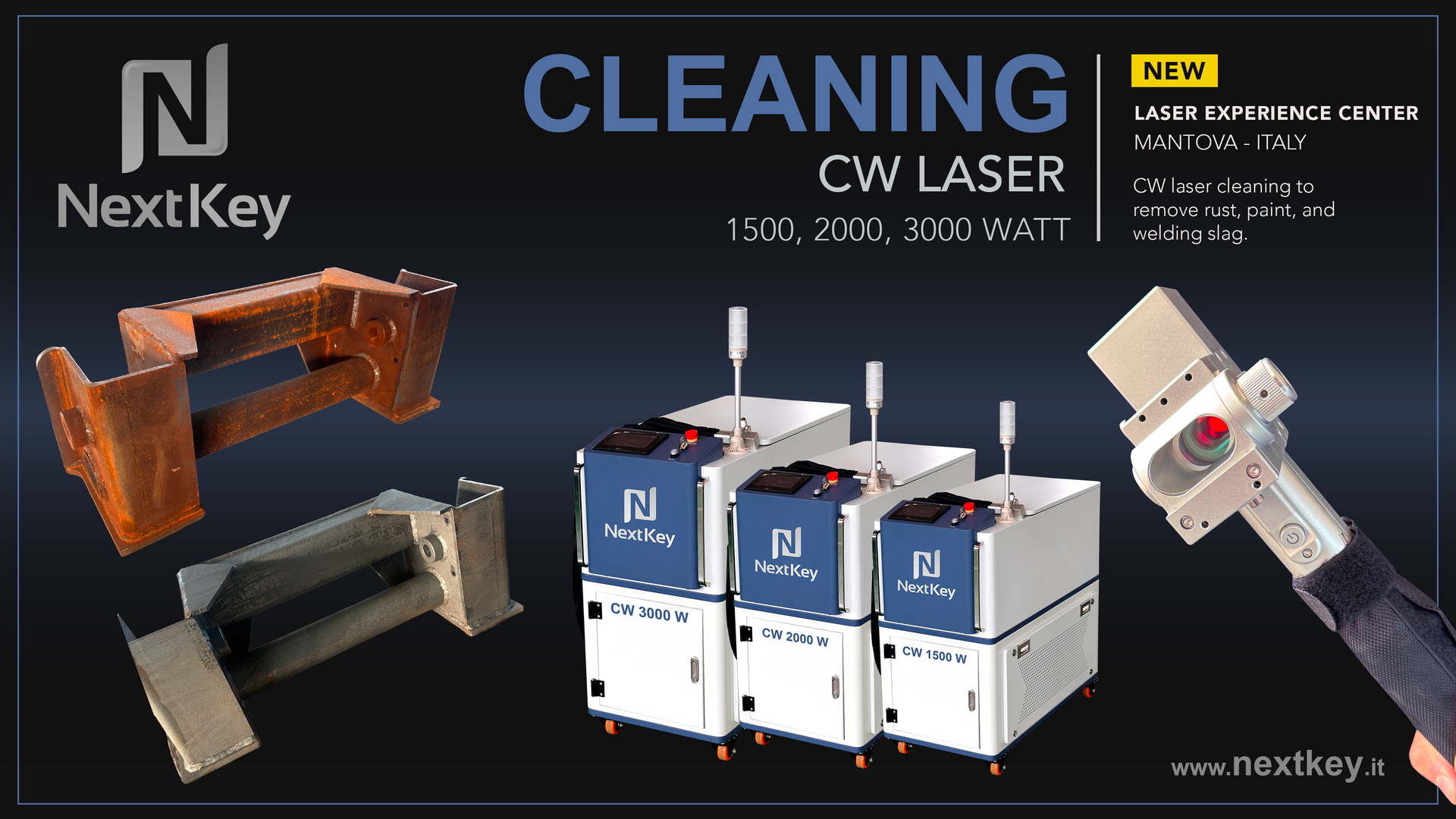

PORTABLE CW LASER CLEANERS

removing rust with laser

Main data of portable cleaning lasers in CW version

Model NCW-1500 NCW-2000 NCW-3000
1500W 2000W 3000W
Fiber Cable length 10 mt 10 mt 10-20 mt
Wavelength 1070nm 1070nm 1070nm
Cleaning speed ≤30M²/Person ≤50M²/Person ≤80M²/Ora
Width, beam 10-300mm 10-300mm 10-650mm
Power Supply AC 220/110±10%V 380/220V±10%V 380/220V±10%V
Frequency 50/60Hz 50/60Hz 50/60Hz
Consumption at 25℃ <10kW <10kW <14kW
Cooling Liquid Liquid Liquid
  • Download the file PDF

The advantages of portable CW laser cleaners up to 3 kW

Laser cleaners in version CW (Continuous Wave) up to 3 kW offer several advantages in the heavy metal carpentry and in the naval industry, especially for applications of removal of paint, rust and welding slagHere are the main benefits:

1. High removal speed

  • Thanks to their continuous and higher power compared to pulsed lasers, CW lasers can quickly remove large amounts of material, reducing processing times.
  • They are particularly useful for cleaning large surfaces, such as ship hulls, metal structures and large components.

2. Greater efficiency on thick layers and stubborn contamination

  • CW lasers are more effective at removing thick layers of paint, heavy rust, and welding slag than pulsed lasers, which may require multiple passes.
  • Ideal for operations on structural steel, industrial pipes and surfaces exposed to extreme environmental conditions.

3. Reduction in the use of abrasives and chemicals

  • CW laser systems eliminate the need for sandblasting, brushing or chemical solvents, reducing environmental impact and waste disposal costs.
  • They improve operator safety by eliminating exposure to dust and toxic substances.

Conclusion

The CW laser cleaners up to 3 kW, they are the optimal solution for the industry naval, petrochemical and heavy metal fabrication industries, where a is required fast and effective removal of rust, paint and welding slag on large surfaces and with thick contaminants. Compared to pulsed lasers, they offer greater power, speed and ability to work on more difficult materials, making them ideal for high-productivity industrial environments

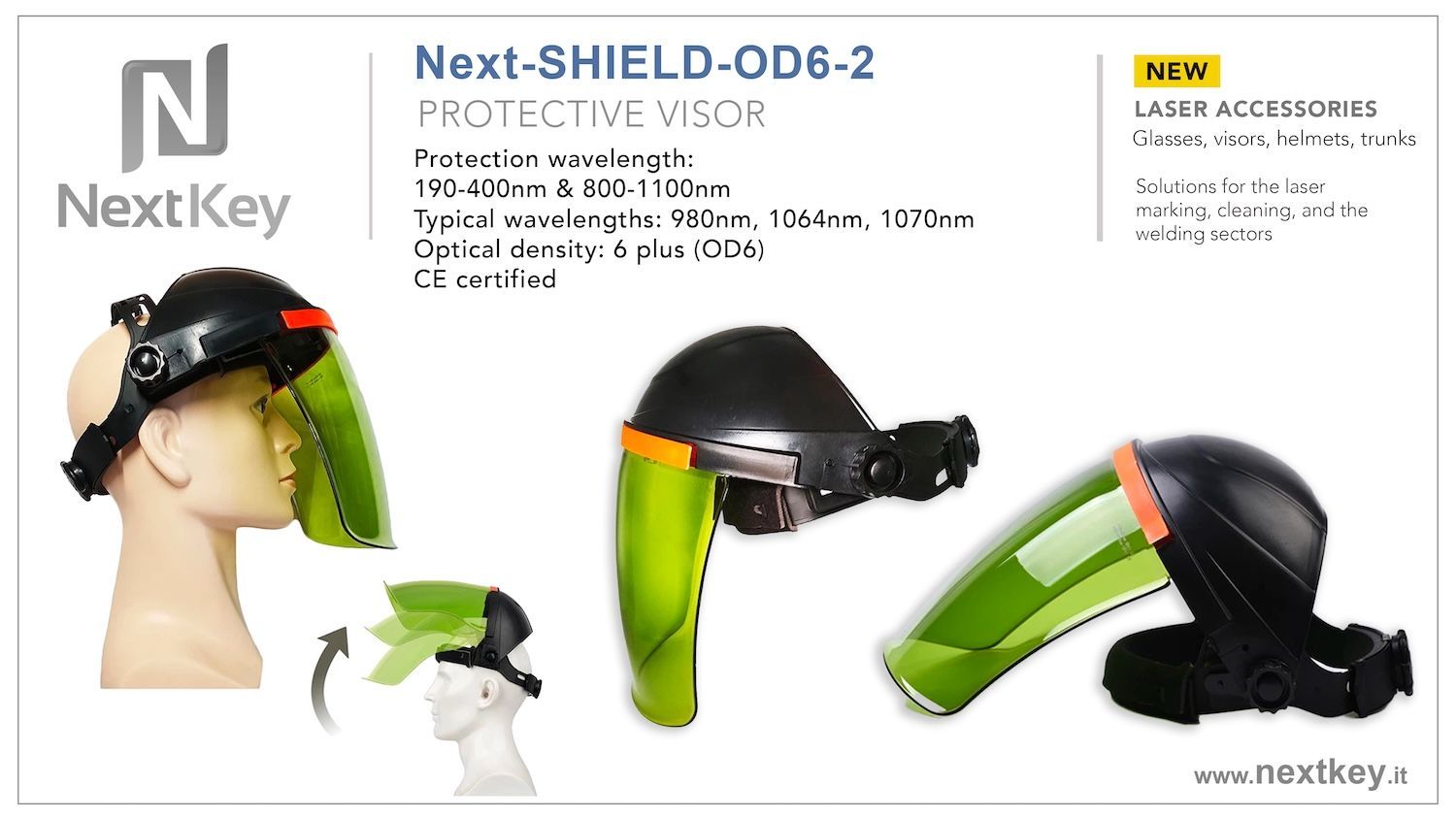

Accessories for laser markers

NextKey srl offers its customers accessories such as helmets, visors, goggles, and cases for laser marking and cleaning systems. The use of these protective devices is practically mandatory for all personnel involved in the laser marking and cleaning processes.

  • Download the file PDF
laser protection
