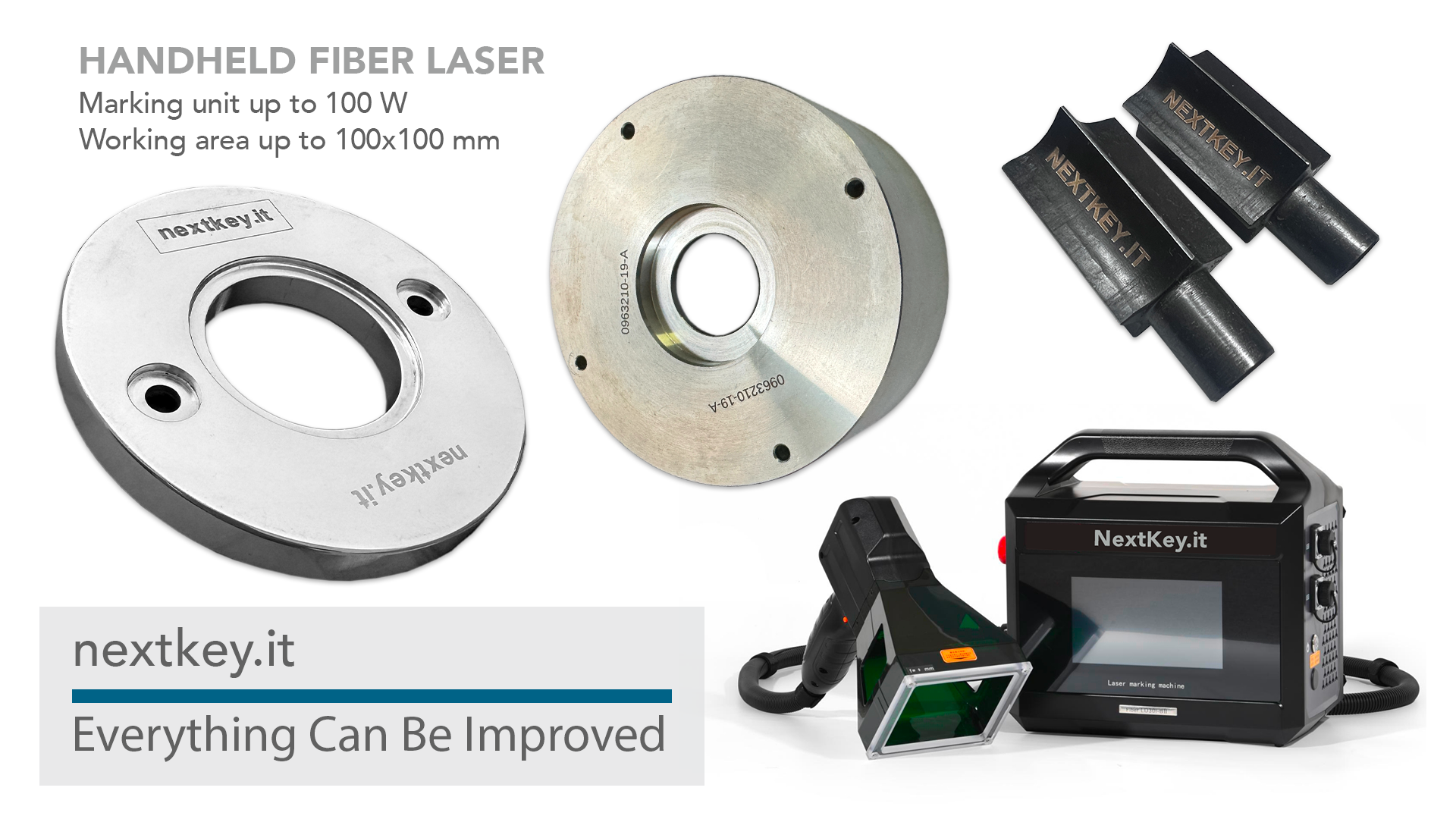

Handheld Portable Laser Marking
Laser Marking Goes Portable
A portable laser marking system designed to engrave logos, texts, QR codes and barcodes on a wide range of surfaces and materials.
| Model | LD-20 | LD-30 | LD-50 | LD-100 |
|---|---|---|---|---|
| Laser Power | 20 W | 30 W | 50 W | 100 W |
| Laser Type | Fiber Optic | Fiber Optic | Fiber Optic | Fiber Optic |
| Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Marking Area | 50x50 -100X100 mm | 50x50 -100X100 mm | 50x50 -100X100 mm | 50x50 -100X100 mm |
| Weight | 7.5 kg | 8.5 kg | 9.5 kg | 13.5 kg |
| Power Supply | AC 220/110±10%V | AC 220/110±10%V | AC 220/110±10%V | AC 220/110±10%V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Consumption at 25℃ | 350 watt | 350 watt | 550 watt | 700 watt |
| Cooling | Air | Air | Air | Air |
| Software | CAD EDITOR | CAD EDITOR | CAD EDITOR | CAD EDITOR |
| Laser Safety | Class 4 | Class 4 | Class 4 | Class 4 |
Logos and writings on your products
Thanks to its intuitive operation and versatility, our laser marking systems allow high-precision engraving on a wide range of products and materials, in any production environment. We support customers across multiple industries, including metalworking, street furniture, stainless steel components, turning companies, mechanical workshops and general manufacturing.
Laser marking technology is also widely adopted in sectors such as furniture, plastics, construction and nautical industries, where permanent marking is increasingly important for product traceability, identification, branding and marketing purposes. Reliable, precise and flexible, our laser solutions provide an efficient way to enhance products and optimize industrial processes.
Portable Laser Marking Systems
NextKey Srl offers a complete range of portable laser marking systems available with 20W, 30W, 50W and 100W laser sources, designed to meet different industrial marking requirements. The systems are available with marking areas of 50x50 mm or 100x100 mm, providing maximum flexibility for a wide range of applications.
Specifications
Equipped with a Linux operating system, our portable laser markers ensure secure data management and reliable file exchange via USB. The intuitive user interface is available in Italian and English, allowing operators to easily create markings directly from the integrated touchscreen display or import existing files in the most common graphic formats, including BMP, DXF, HPGL, JPEG and PLT. The system can be connected directly to a standard 220V power supply. Thanks to its optimized design, power consumption is extremely low, ranging from 200W to 250W depending on the selected laser power (20W, 30W, 50W or 100W).
Compact Design and Maximum Portability
Designed for maximum mobility and ease of use, our portable laser marker features an ergonomic aluminum body with compact dimensions of only 310 x 206 x 307 mm. The lightweight design allows easy transport and installation, with a weight of approximately 9 kg for the standard version and 9.8 kg for the battery-powered version.
Optional Battery Version and Accessories

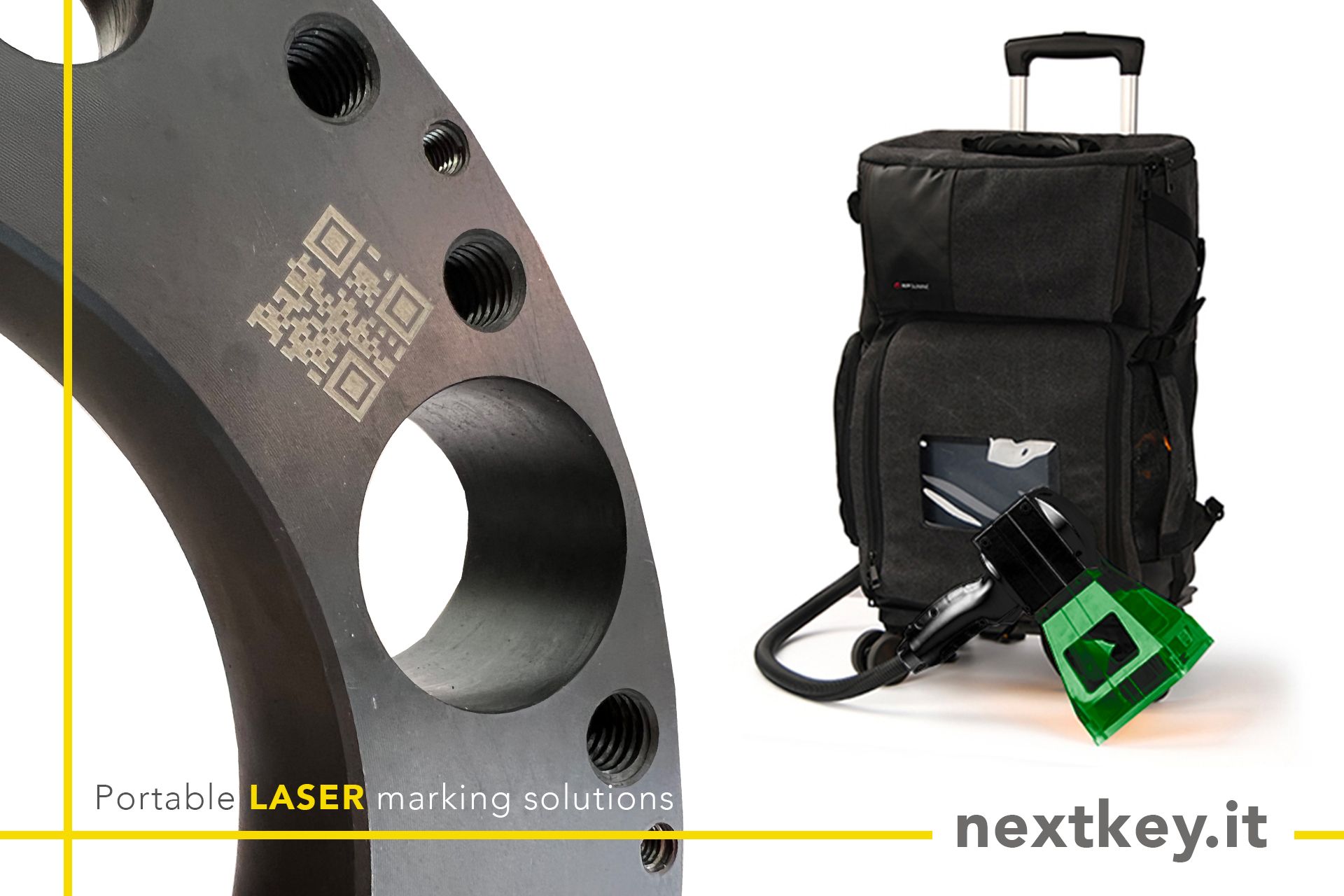

For applications requiring complete freedom of movement, NextKey provides a battery-powered version, allowing laser marking operations without the limitation of a power cable.
The systems can also be equipped with a stand holder, which transforms the portable laser marker into a stable workstation solution, combining the advantages of mobility with the convenience of a fixed laser marking system.
Reliable, compact and versatile, NextKey portable laser marking systems are the ideal solution for industrial traceability, product identification, QR codes, barcodes, logos and customized engravings directly on components and finished products.
Accessories for laser markers
NextKey srl offers its customers accessories such as helmets, visors, goggles, and cases for laser marking and cleaning systems. The use of these protective devices is practically mandatory for all personnel involved in the laser marking and cleaning processes.
